Marine garbage Incinerator
Specifications
Marine Incinerator with CCS,BV Cert./small incinerator
IMO resolution MEPC76(40)
Combustion Body
Exhaust gas fan
Sludge tank
Application

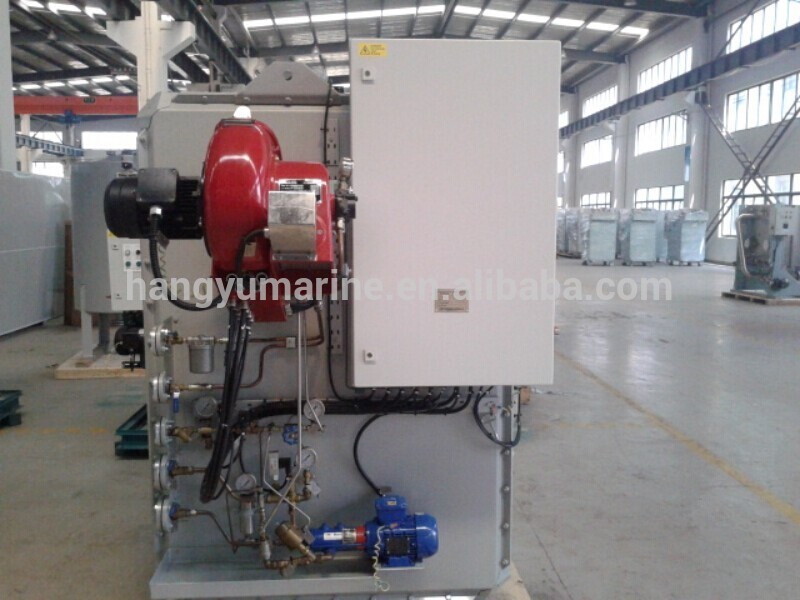

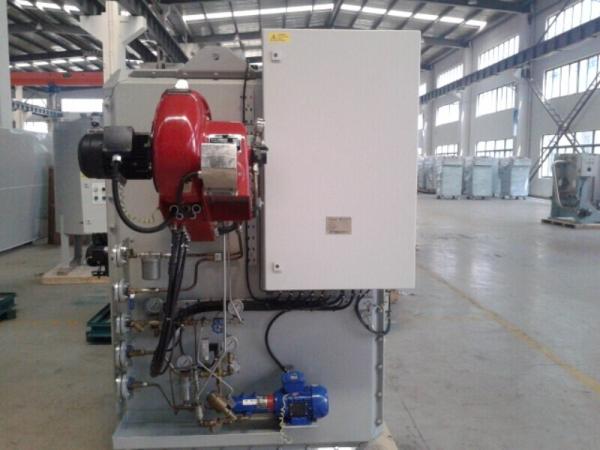

The Waste Incinerator HYINC-18 is equipped with single door in front,which are intended for loading Of
solid waste and ash removing,the incinerator in stand-by mode(com.tem.less than 220°C),the doors
can be opened properly.if the incinerator is running in cooling down mode,the door can be opened till com.
temp.less than 100° C and incinerator fully stop.The electrical control panel is installed on the incinerator
and it contains fuses,starters,PLC andOperator panel.the electric panel is built according to international
standards for marine equipment.The operator panel which is located at the right side of the control panel
has a touch screen andDefined keys for system starting/stopping and selecting burner modes.the burning
process is controlled by the PLC and monitored by the HMI(human machine interface)and scanned
by a photo resistor.the combustion chamber temperatures are also regulated automatically by the PLC
control system.
Features
.Man-Machine dialogue interfacefor convenientoperations
.Continuous solid waste loading device withpneumatic control, as an option.
.Sludge agitation by a recirculation pump toobtainbest mixture.
.Three options of sludge heating source,includingelectrical elements, steam coil or thermal coil.
.Immediate working condition traceability.
Certificates: USCG,ABS,CCS,DNV,NK etcand all leading classification societies
Models
GRINC-18 (180,000 Kcal/H,22.5kg/h)
GRINC-50 (500,000 Kcal/H,63kg/h)
GRINC-80 (800,000 Kcal/H,100kg/h)
